Calling an API

HTTP Request (Net → HttpRequest) is how a flow talks to anything with an HTTP interface — a REST API, a webhook receiver, a legacy endpoint that only speaks XML.

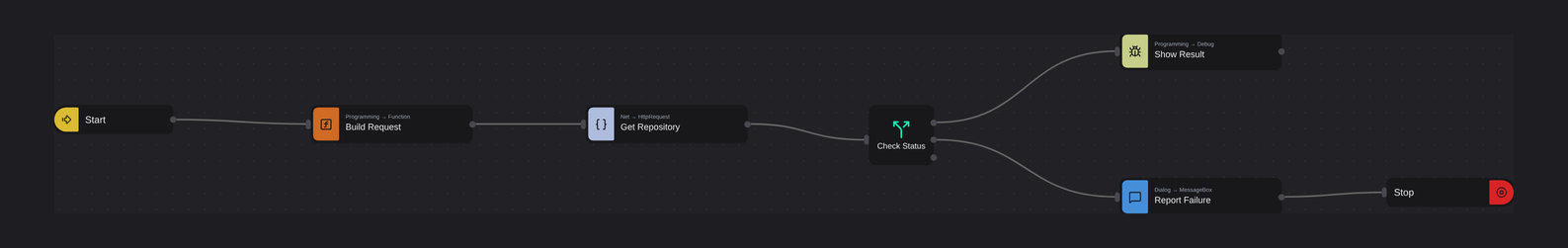

A GET request

Four things happen: a Function node puts the URL on the message, HTTP Request calls it, a Switch checks the status code, and only then does the flow use the response.

That Switch is not decoration — see status codes below.

The fields it uses

The node reads and writes ordinary message fields, and the defaults are worth learning because most examples use them unchanged:

Direction	Property	Default field
In	Request body	msg.req
In	Headers	msg.reqHeaders
In	Cookies	msg.reqCookies
Out	Response	msg.resp
Out	Headers	msg.respHeaders
Out	Cookies	msg.respCookies
Out	Status Code	msg.respStatus

So after a call, msg.resp holds the body and msg.respStatus holds the number.

Method and URL

Method is GET, POST, PUT, DELETE or PATCH. URL takes a literal, a message field or a JS expression.

A URL with no scheme becomes http://, not https://

If the URL does not start with http, the node prefixes http://. Type api.example.com/v1 and you make a plaintext request. Always include https://.

Status codes do not fail the node

The single most important thing on this page.

A 404, a 500, a 401 — none of them make the node throw. The request succeeded; the server simply answered with a number you may not like. The node only errors when the request could not be made: DNS failure, connection refused, TLS failure, timeout.

So this is a bug:

HTTP Request → Function that reads msg.resp.items

If the API returned 401, msg.resp holds an error object and your Function throws something confusing several nodes away from the cause.

Check the status first:

Approach
Switch on msg.respStatus	Best when different codes need different handling — retry a 429, alert on a 500
Function that throws on failure	Best when anything non-2xx should just stop the flow, and a Catch deals with it

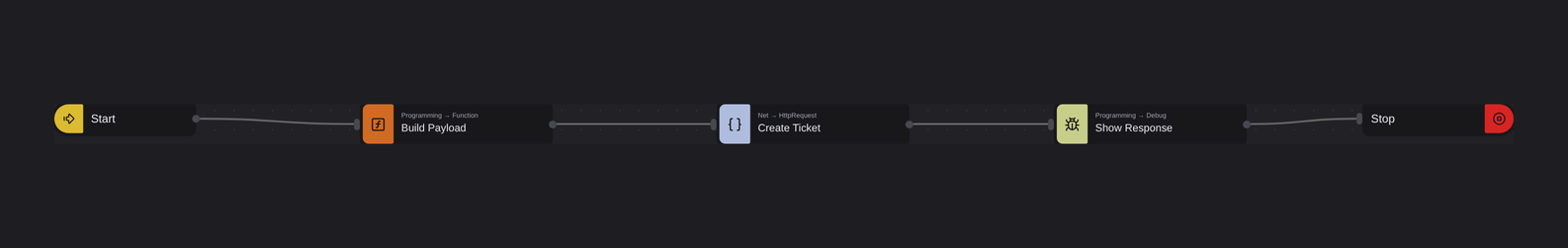

POST with a body

Put the payload on msg.req — an object, and the node serialises it — then set the method to POST.

Content types

The Content-Type header decides how the body is encoded, and the node handles four cases:

Content-Type	Body should be	What happens
application/json	Object	Serialised as JSON. This is the default header on a new node
application/x-www-form-urlencoded	Object of strings	URL-encoded form
multipart/form-data	Object of strings	Multipart form — and see the file trick below
anything else	String	Sent as-is

Uploading a file

With multipart/form-data, a value beginning with @ is treated as a path to a file on the robot, and the file is uploaded as that field:

msg.req = {
  description: "Signed contract",
  document: "@C:/invoices/contract.pdf"
};

description is sent as a normal field; document is sent as the file's contents. The file must exist on the robot, not on your machine.

When the response is parsed, and when it is not

Also subtle, also a common surprise. The node parses the body to JSON only when:

• the response has no Content-Type header, or
• the Content-Type is application/json

Anything else — text/html, application/xml, text/plain — arrives as a string.

That is deliberate, so you can fetch a web page or an XML feed and get the raw text. But it means an API that returns JSON under the wrong content type gives you a string that looks like JSON, and msg.resp.field is undefined. If that happens, JSON.parse it in a Function node.

Encode as Base64 overrides all of this and gives you the body base64-encoded — which is what you want for images, PDFs and other binary responses.

Authentication

Authentication offers No Authentication or Basic Authentication. Basic takes a Login item from a vault — the username and password come from there, never from a node property.

It must be a Login item specifically. Point it at an API Key item and the node fails with a wrong-credential-type error.

For everything else — bearer tokens, API keys, custom schemes — use a Custom Header instead:

Name	Value
Authorization	Bearer <token>
X-API-Key	<key>

Do not type the token into the header

Read it from a vault item with Get Item and pass it on the message. A token typed into a node property is a token committed to your flow's git history.

Timeout

Timeout (seconds) defaults to 30. Raise it for a slow report endpoint; lower it for something in a loop, so one hanging call does not stall a batch.

A timeout is a node error, so a Catch sees it — unlike a 500.

Sessions and cookies

For an API that logs in and then expects a session, use the cookie store: connect the response's cookie store output to the next request's cookie store input, and the jar carries session cookies between calls automatically. That saves parsing Set-Cookie by hand.

Streaming responses

Enable Streaming changes the node's behaviour completely: instead of one message when the response is complete, it emits a message per line as it arrives, each carrying a msg.stream_index. The final message has an empty body and marks the end.

This is how you consume a streaming LLM API or a server-sent-events feed and show progress while it happens, rather than waiting for the whole answer.

Proxies

Setting
No Proxy	Direct. The default
Manual Proxy	Your own proxy, host:port, with optional basic auth from a vault
Robomotion Proxy	Routes through Robomotion's proxy service, billed to your credits

Robomotion Proxy is the one to know about: it exists for requests that get blocked when they come from your own address — scraping, geo-restricted endpoints — and takes extra parameters to control its behaviour. Note that it also disables TLS verification, because the proxy terminates the connection.

Debugging a request

Enable Debugging prints the full request and response — method, URL, every header, the body — to the robot's console. When an API works in Postman and not in your flow, turn this on and compare the two requests; the difference is almost always a header.

Insecure Skip Verify turns off TLS certificate checking. It makes self-signed certificates work, and it makes you vulnerable to interception — use it against an internal host you trust, never against the public internet.
