Write a CSV file

A short one: build a table in a Function node and write it out as a .csv file.

1. Create a new project from the Designer.

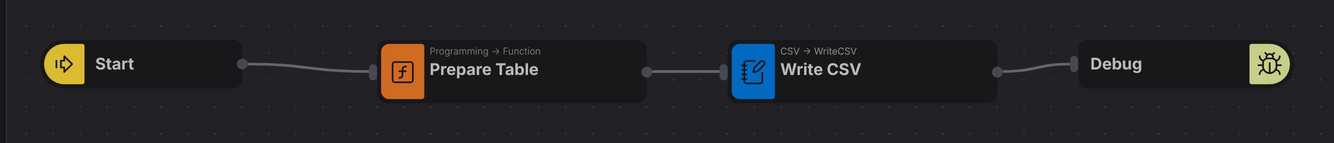

2. Build this flow by dragging nodes from the palette, or by right-clicking the empty canvas and searching by name.



   Name on the canvas	Node
   Start	Trigger → Inject
   Prepare Table	Programming → Function
   Write CSV	CSV → Write CSV
   Debug	Programming → Debug

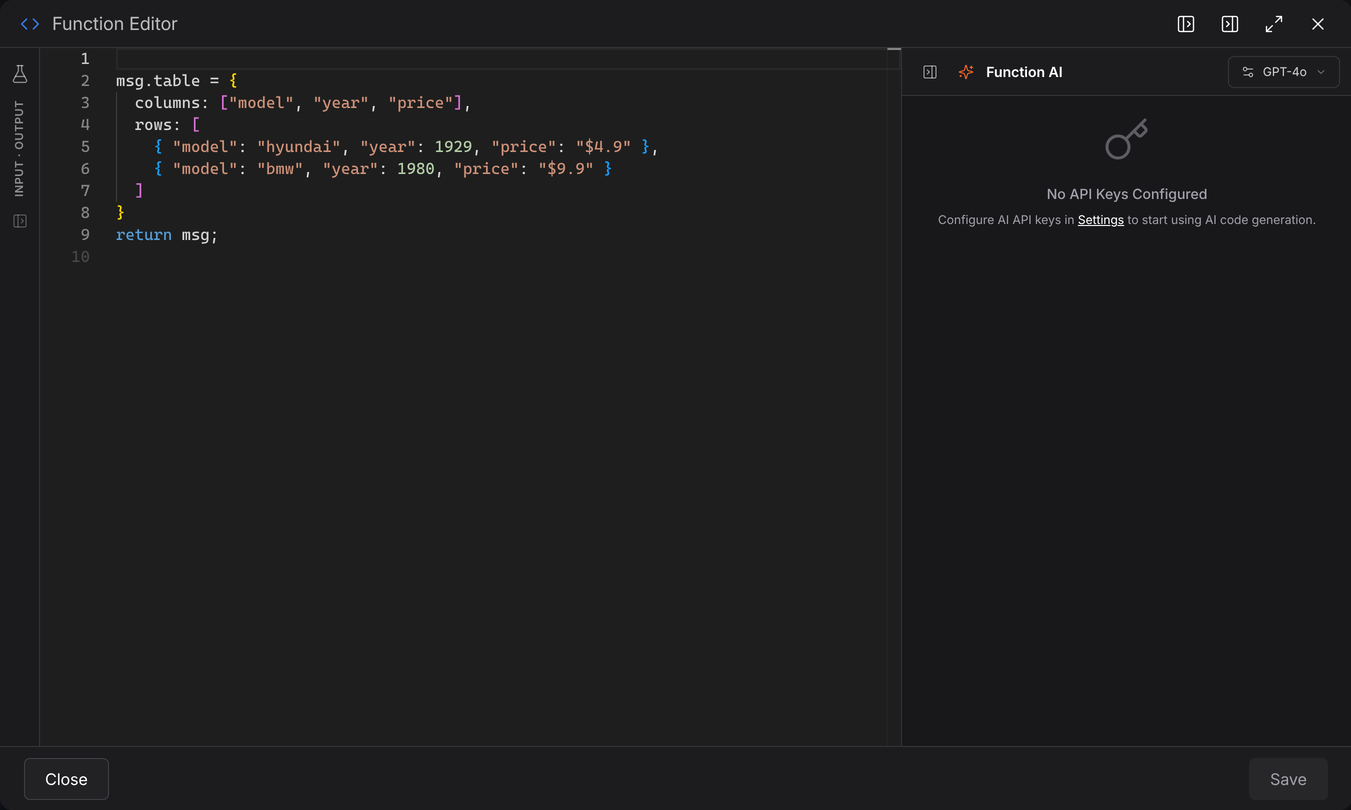

3. Click Prepare Table, open its editor, and paste:



   msg.table = {
     columns: ["model", "year", "price"],
     rows: [
       { "model": "hyundai", "year": 1929, "price": "$4.9" },
       { "model": "bmw", "year": 1980, "price": "$9.9" }
     ]
   }
   return msg;

   note

   This { columns, rows } shape is Robomotion's data table — the same structure the Excel and CSV nodes read and write, and the same thing an Excel Get Range hands back. Nothing here is CSV-specific.

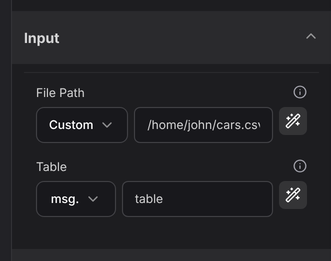

4. Click Write CSV and set the file path and the table to write.



   note

   Change the File Path to somewhere that exists on your machine.

5. Run the flow and open the file. The columns become the header row, and each object in rows becomes a line.

   model,year,price
   hyundai,1929,$4.9
   bmw,1980,$9.9

Try changing it

• Turn Headers off in the Write CSV options and run again — the header line disappears.
• Swap Write CSV for Append CSV and run twice; the rows stack instead of overwriting.
• Replace the Function node with an Excel Get Range and you have an xlsx-to-csv converter, because both nodes speak the same table shape.
