Versions and Publishing

A flow you are editing is the master working copy. A version is a frozen snapshot of it with a name. Publishing is something you do to a version — which is why versioning and publishing are one screen rather than two.

The version selector sits in the top bar, next to the project name:

The version selector

It shows which version the canvas is on. master means you are editing the live working copy.

Version Control​

Clicking it opens Version Control:

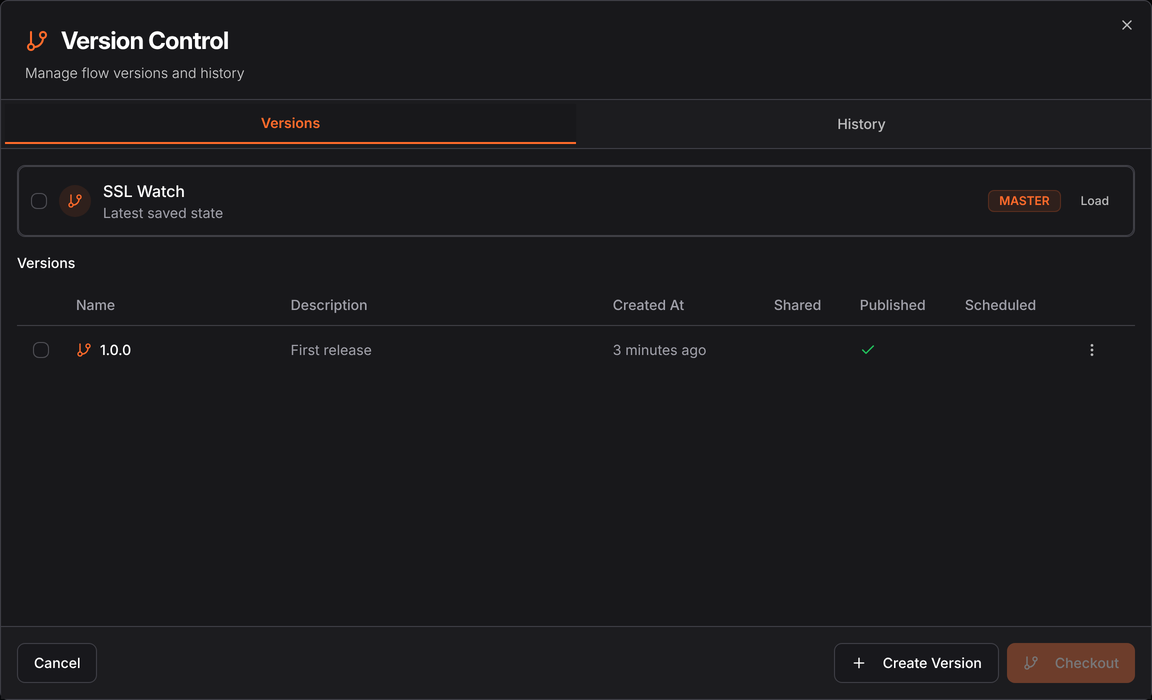

The Version Control dialog

The row at the top is the working copy — "Latest saved state", tagged MASTER. Below it is every version you have cut, with four columns that answer the question people actually have:

ColumnMeaning
SharedThis version is shared with others
PublishedAvailable to schedules, triggers and the API
ScheduledA schedule is currently running it
Created AtWhen it was frozen

That Published tick is the whole publish story. There is no separate publish screen.

Creating a version​

Create Version freezes the current state under a name and description. Name it something you will recognise in a schedule six months from now — 1.0.0, or before-vat-change.

A version is immutable. Keep editing master and the version stays as it was, which is the point: a schedule pinned to 1.0.0 keeps running 1.0.0 while you work on the next one.

Publishing​

Publishing makes a version available to everything outside the Designer — schedules, triggers, Cloud Run, and the API. An unpublished flow can only be run by hand from the Designer.

Publish, then schedule

Schedules and triggers can only select a published version. If a flow does not appear in the list when you try to schedule it, this is why.

Published flows are listed in Admin Console → Published Flows, which is where you schedule and manage them.

Checkout​

Checkout loads an old version onto the canvas so you can look at it, or go back to it. The History tab beside Versions shows the commit history behind the flow — every Save is a commit.

Tick the checkboxes on two rows and Checkout becomes Compare, which opens Visual Diff: both versions on one canvas, with added, removed and changed nodes picked out. It is the fastest way to answer "what changed between the version that worked and this one".

Version before you change something that runs

The cheapest insurance in the product. Cut a version before editing a flow that is scheduled, and rolling back is a checkout rather than an archaeology exercise.
